PYE Tapes

Features

Used for measuring circumference and diameters of all types of round bodies metal, jewellery, leather and similar materials.
Scale with laser engraved markings
Made of stainless steel

SPECIFICATIONS & DIMENSIONS

(Graduation 0.01mm)

Order No.	Circumference Range	Diameter Range	Accuracy (±) Circumference
652-300	90-950	28-300mm	(±) (0.3 + 0.2L) Where "L" is the Value of Length in Meter
652-600	940-1880	300-600mm
652-900	1880-2820	600-900mm
652-1200	2820-3760	900-1200mm
652-1500	3760-4710	1200-1500mm

SPECIFICATIONS & DIMENSIONS

(Graduation 0.01mm)

Order No.	Circumference Range	Diameter Range	Accuracy (±) Circumference	Diameter Range
653-950	90-950	20-300mm	1.5mm	0.5mm
653-2200	940-2200	300-700mm	1.5mm	0.5mm
653-3460	2190-3460	700-1100mm	1.5mm	0.5mm

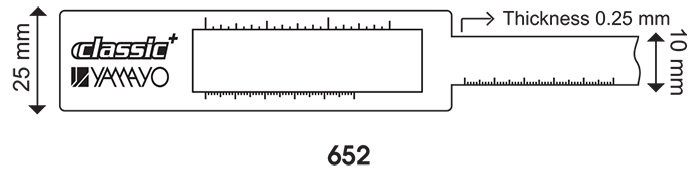

PYE Tape-652

PYE Tape-653
