Yamayo | Measuring Instruments

Inside Outside Measurements

Digimatic Internal Measuring Gauge with Bluetooth

Products >> Classic Measuring Instruments >> Inside Outside Measurements >> Digimatic Internal Measuring Gauge with Bluetooth

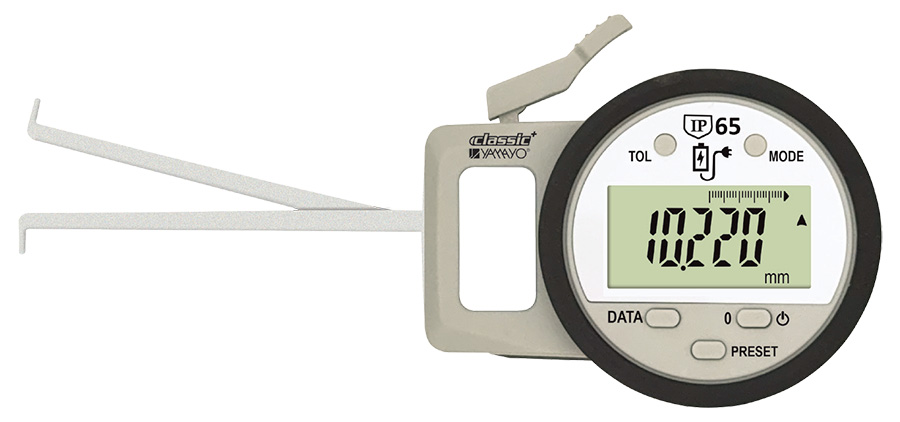

Digimatic Internal Measuring Gauge with Bluetooth

Features

IP65 dust and water jet penetration proof.
Built in rechargeable lithium battery.
Built in wireless data transmission Bluetooth enabled.
Function: On/Off, Origin (Zero setting), Preset, inch/mm, Tolerance preset.

SPECIFICATIONS & DIMENSIONS

Order No.	Range	Resolution	Accuracy (±)	A	B	L
490B-15	5-15mm/0.2-0.6"	0.002mm/ 0.0001"	0.015mm	2.3	0.8	35
490B-30	10-30mm/0.4-1.2"	0.005mm/ 0.0002"	0.025mm	5.2	1.2	85
490B-50	30-50mm/1.2-2"	0.005mm/ 0.0002"	0.025mm	7	1.2	85
490B-100	50-100mm/2-4"	0.010mm/0.0005"	0.050mm	8.3	2.4	236
490B-150	100-150mm/4-6"	0.010mm/0.0005"	0.050mm	8.3	2.4	236
490B-200	150-200mm/6-8"	0.010mm/0.0005"	0.050mm	8.3	2.4	236

(Unit: mm)

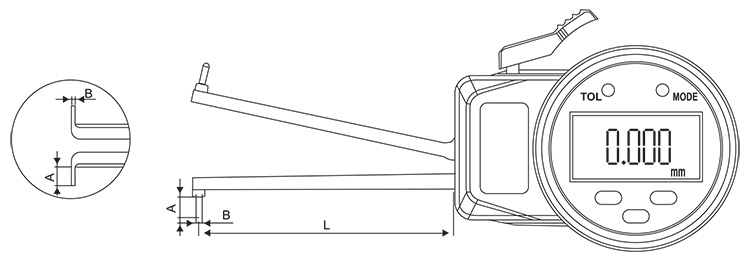

Digimatic Internal Measuring Gauge with Bluetooth - SPECIFICATIONS & DIMENSIONS
