Yamayo | Measuring Instruments

Level Measurements

Digimatic Linear Levels

Products >> Classic Measuring Instruments >> Level Measurements >> Digimatic Linear Levels

Digimatic Linear Levels

Features

High accuracy level measurements.
With built in wireless transmission (Bluetooth enabled).
Analog bubbles show the tilt in the X-axis and Y-axis.
Easy self-calibration.
Power supply: One 3AAA batteries.
Function: On/Off, HOLD, M (flips display). unit conversion (°, mm/ m)

SPECIFICATIONS & DIMENSIONS

Resolution: 0.01mm/m (0.001°)

Order No.	Range	Repeatibility	Response time	Accuracy (±)
534-200	±0.5mm/m (±0.028°)	0.01mm/m	<3s	±0.02mm/m

(Unit: mm)

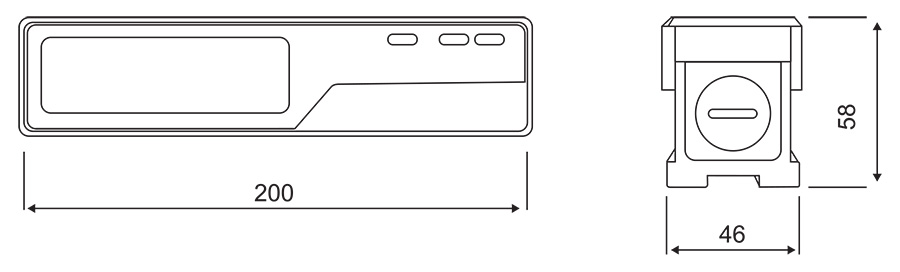

Linear Levels - SPECIFICATIONS & DIMENSIONS
