Height Measurements
Digimatic Single Beam Height Gauge with Bluetooth
Products >> Classic Measuring Instruments >>
Height Measurements
>>
Digimatic Single Beam Height Gauge with Bluetooth
Features
Allows smooth height measurements by using slider adjustment hand wheel.
Carbide tipped scriber.
SPC data output (built in wireless transmission model the SPC data output port is not available).
Built in wireless data transmission Bluetooth enabled (optional).
IP65 dust and water resistant.
Power supply: One 3 V lithium battery CR2032.
Function: On/Off, Origin (Zero setting), Preset, inch/mm, absolute measurements, HOLD.
Made of Stainless Steel.

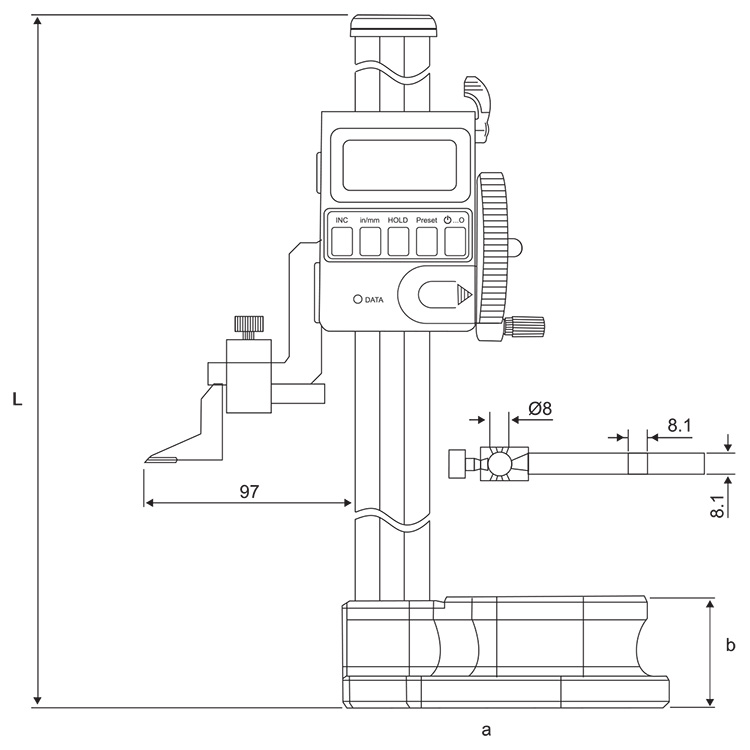

SPECIFICATIONS & DIMENSIONS
Resolution: 0.01mm/0.0005"
Order No.
Range
Accuracy (±)
a
b
L
254B-300
300mm/12”
0.04mm
150
50
492
254B-600
600mm/24”
0.05mm
183
57
796
(Unit: mm)
Download PDF
https://yamayoinstruments.com/classic-pdf/height-measurements/digimatic-single-beam-height-gauge-with-bluetooth.pdf
