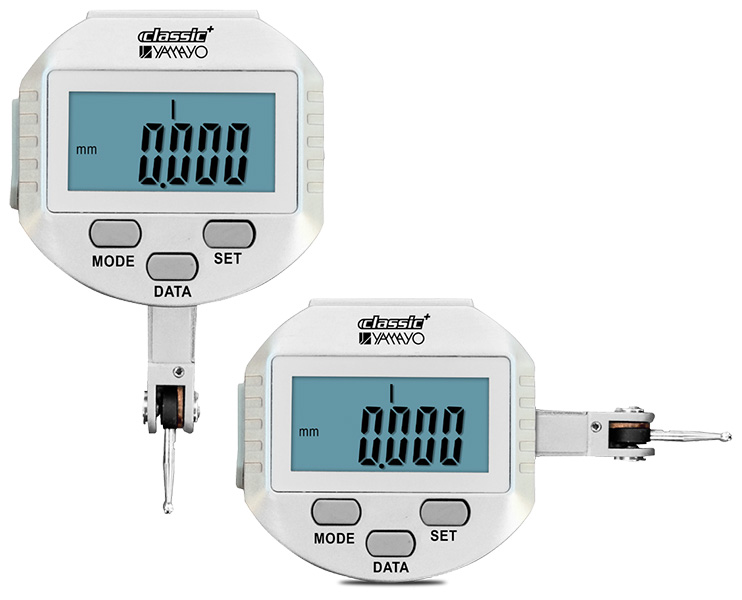

Digimatic Water Proof Lever Indicator

Products >> Classic Measuring Instruments >> Indicators >> Digimatic Water Proof Lever Indicator

Features

IP65 dust/ water resistant.
SPC data output (In wireless transmission model, the SPC output port is only used as an external power input port).
Built in Bluetooth wireless transmission (optional).
With Analogue pointer
Functions: on/off, set (min) (max), inch/mm conversion.
Power supply: One CR2032 battery, automatic power off.
360° rotatable display.

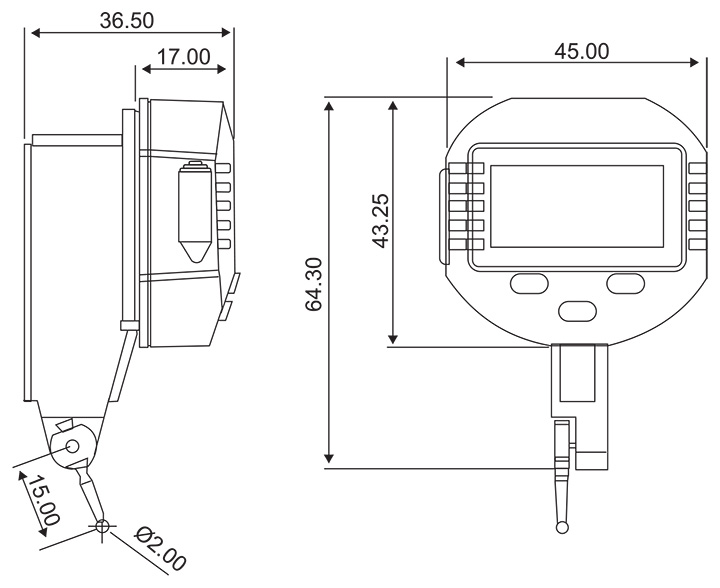

SPECIFICATIONS & DIMENSIONS

Resolution: 0.001mm/0.00005"

Order No.	Range	Accuracy (±)	Repeatability
450-08	0- 0.8mm/0-0.03"	0.013mm/0.0005"	0.003mm/0.0005"
450B-08	0- 0.8mm/0-0.03"	0.013mm/0.0005"	0.003mm/0.0005"

(Unit: mm)
