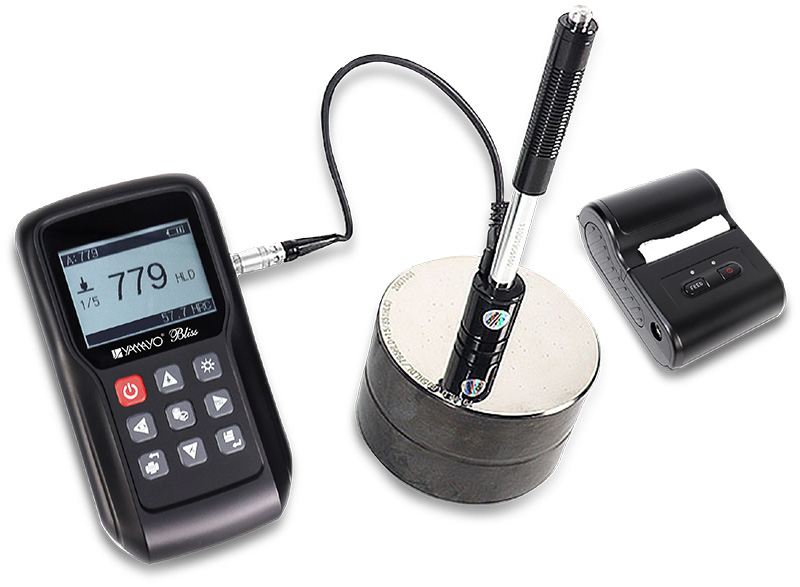

TH-170 Plus Leeb Hardness Tester

Products >> Bliss NDT Instruments >> Metal Hardness Testers >> TH-170 Plus Leeb Hardness Tester

The TH 170 Plus Leeb Hardness Tester can be used for majority of the Hardness testing assignments. It can measure Hardness of Materials such as Steel & Cast Steel, Alloy Steel, Stainless Steel, Grey Cast Iron, Nodular Cast Iron, Aluminium Casting Alloy, Copper Zinc Alloy (Brass), Fine Copper.

FUNCTIONS & FEATURES

Accuracy (±) 6HLD (± 1.5 HRC )
160X128 dot matrix LCD display
Automatic scale conversion HB,HRB,HRC,HV,HSD,Mpa
Automatic recognition of Impact Devices (D, DC, DL, C, D+15, G)
Measurement direction compensation function
Wireless micro printer support
USB data upload (optional)
3 AAA dry batteries, low power consumption design

TECHNICAL PARAMETERS

Model	TH 170 Plus
Accuracy	±6HLD
Scales	HRC, HRB, HB, HV, HSD, Mpa
Impact device	D Standard (Optional: DC,DL,C,D+15, & G)
Display	160 x 128 dot matrix LCD with backlight
Memory	1000 bars
Test direction	All-directional
Printers	Micro wireless printer
Data transfer	USB (Optional)
Power supply	4.5V (3 AAA Dry batteries)
Operating Temperature	Temperature: -10~40°C Humidity: 20%-85%
Storage environment	Temperature: –30~80°C, Humidity: 5% ~ 95%
Dimensions	154 x 82 x 26mm
Weight	230g
Standard Accessories	Display unit (main unit), D-shape impact unit, standard hardness block, small support ring, cleaning brush, carrying case, Micro wireless printer
Standards	GB/T17394, GB/T1172, ASTM A956 & DIN 50156
